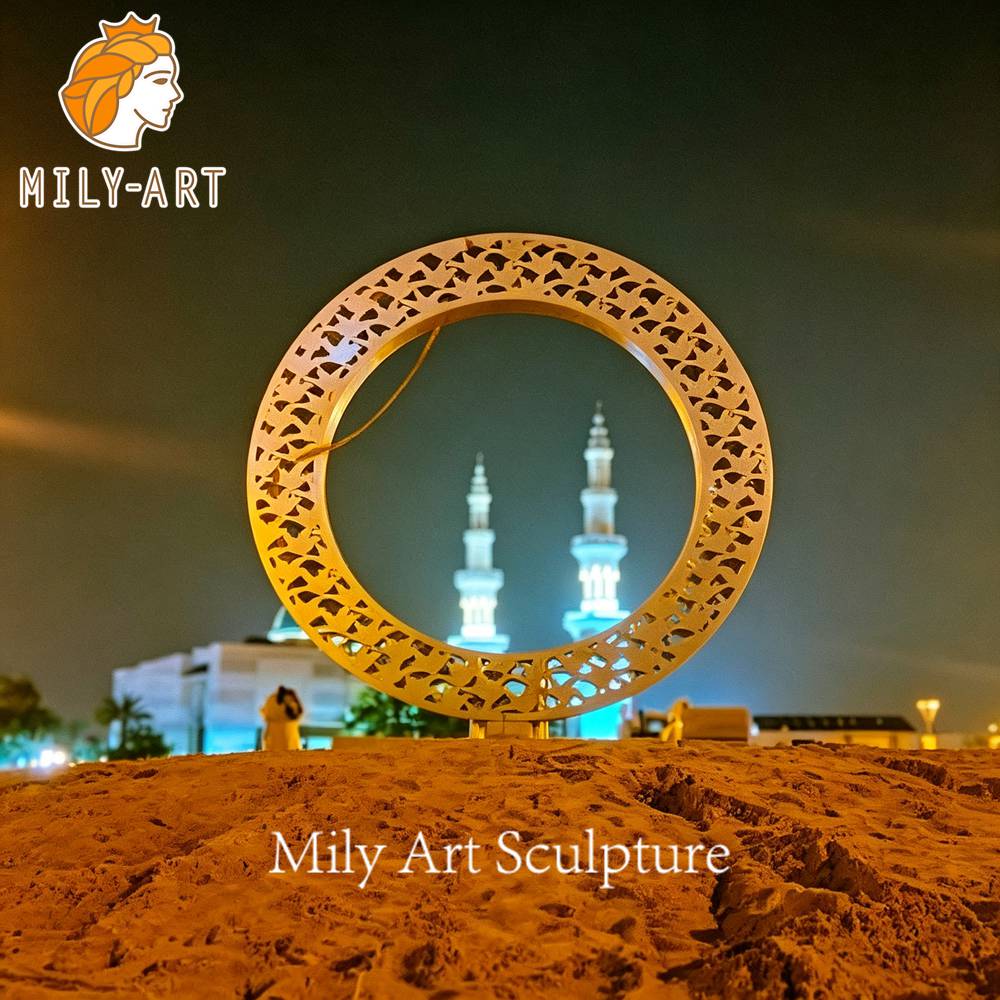

Outdoor Stainless Steel Sculpture Installation Guide

Installing an outdoor stainless steel sculpture is an important part of the entire project. A beautiful sculpture needs more than a good design and high-quality material. It also needs the right foundation, mounting method, and site preparation.

The installation requirements can be very different depending on the size of the sculpture. A small metal garden sculpture may only need a simple embedded connection or anchor bolts. However, a large stainless steel sculpture may require a concrete foundation, lifting equipment, technical drawings, and professional installation support.

At Mily, we generally divide outdoor stainless steel sculpture installation projects into two categories for planning purposes:

• Standard-size sculptures: under 7 feet (about 2.1 meters)
• Large-scale sculptures: 7 feet (about 2.1 meters) and taller

This outdoor stainless steel sculpture installation guide explains the common installation methods for both sizes and the important factors to consider before installation begins.

Installing Standard-Size Sculptures

Standard-size stainless steel sculptures are easier to install. In most cases, a small installation crew can handle the job without heavy equipment. There are two common methods.

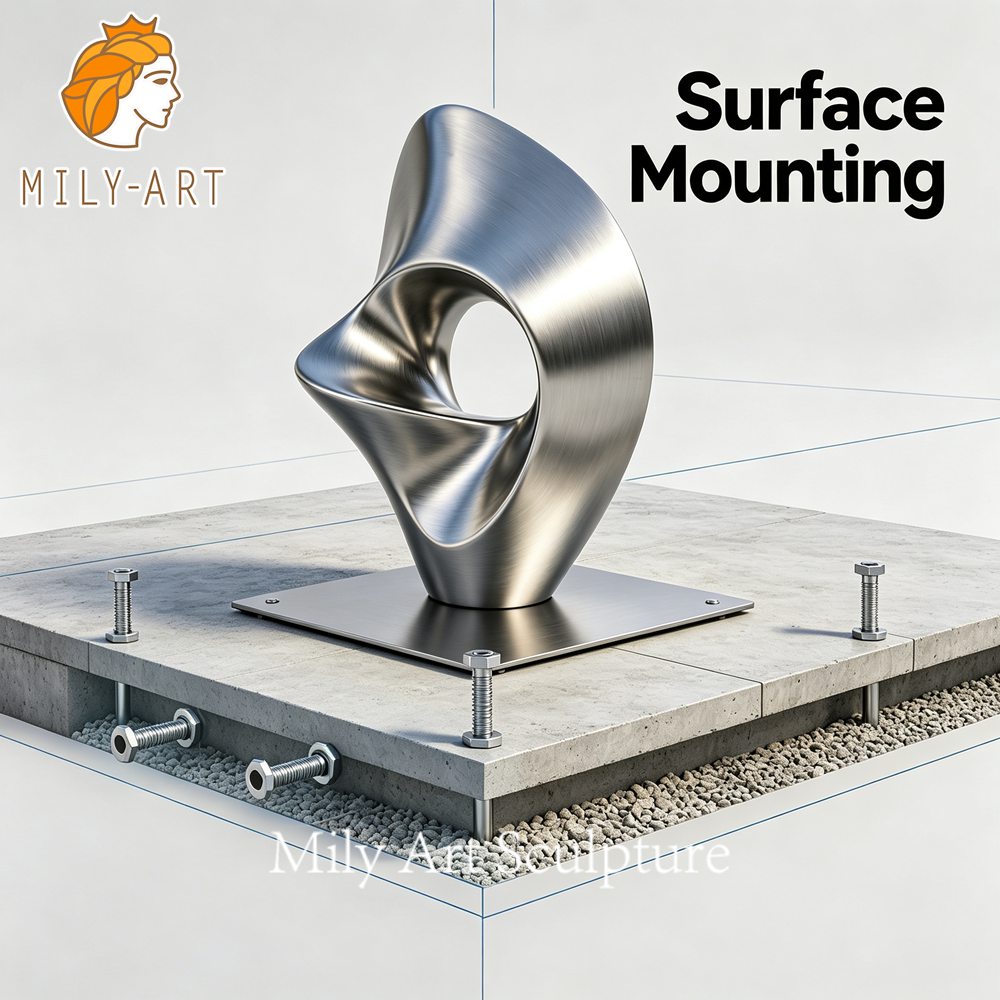

1. Surface Mounting

This method works when you already have a hard, flat surface, such as a concrete patio or stone platform. The sculpture’s base plate is placed on the surface and secured with expansion anchors or chemical anchors. This is one of the fastest and simplest ways to install a small sculpture.

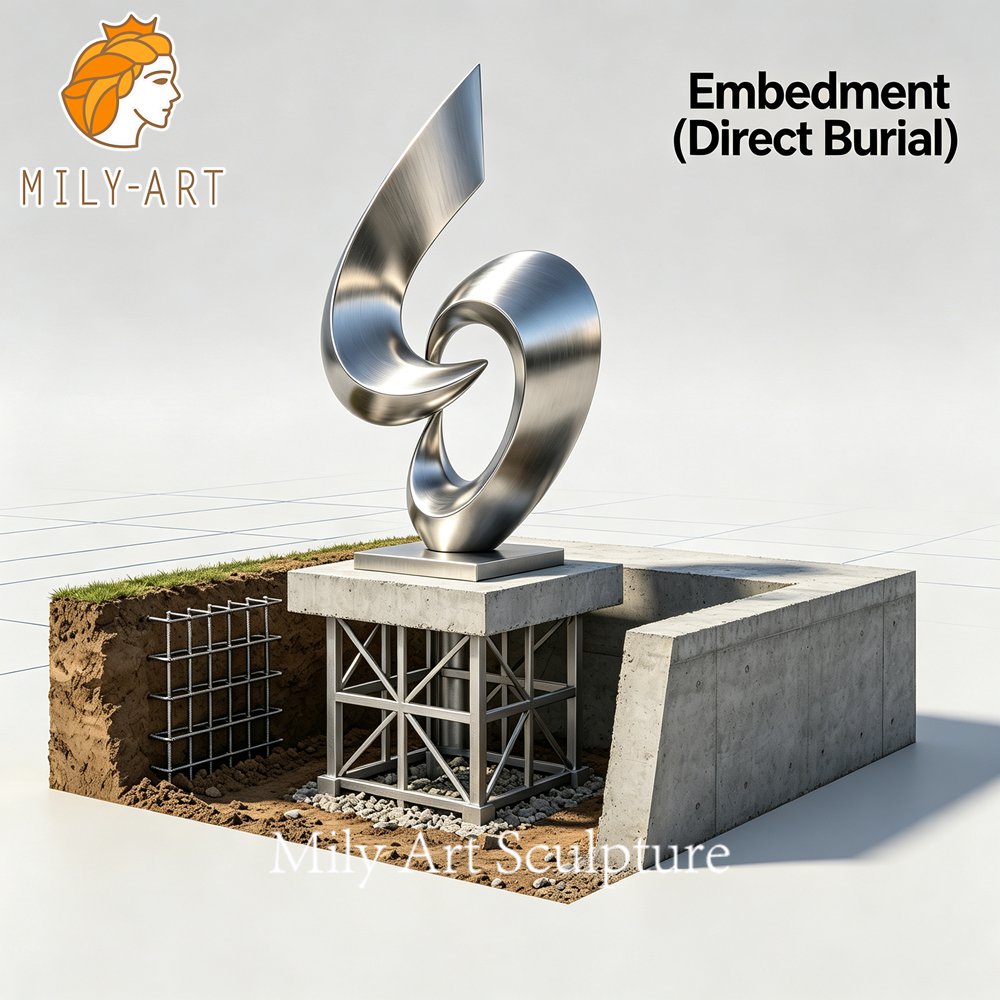

2. Embedment (Direct Burial)

For sculptures without a hard surface nearby, embedment is a common choice. Part of the sculpture’s steel frame is buried directly into a concrete foundation. The required foundation size and depth depend on the sculpture’s height, weight, shape, and site conditions.

Tips and Considerations for Standard Sculptures：

• Always check that the ground is level before installation.
• Even standard-size sculptures can catch wind, so make sure the base is heavy enough or anchored well.
• If the sculpture touches other metal surfaces, use an insulating layer to prevent galvanic corrosion.
• Small sculptures usually do not need a structural engineer, but it is still smart to follow the manufacturer’s installation manual closely.

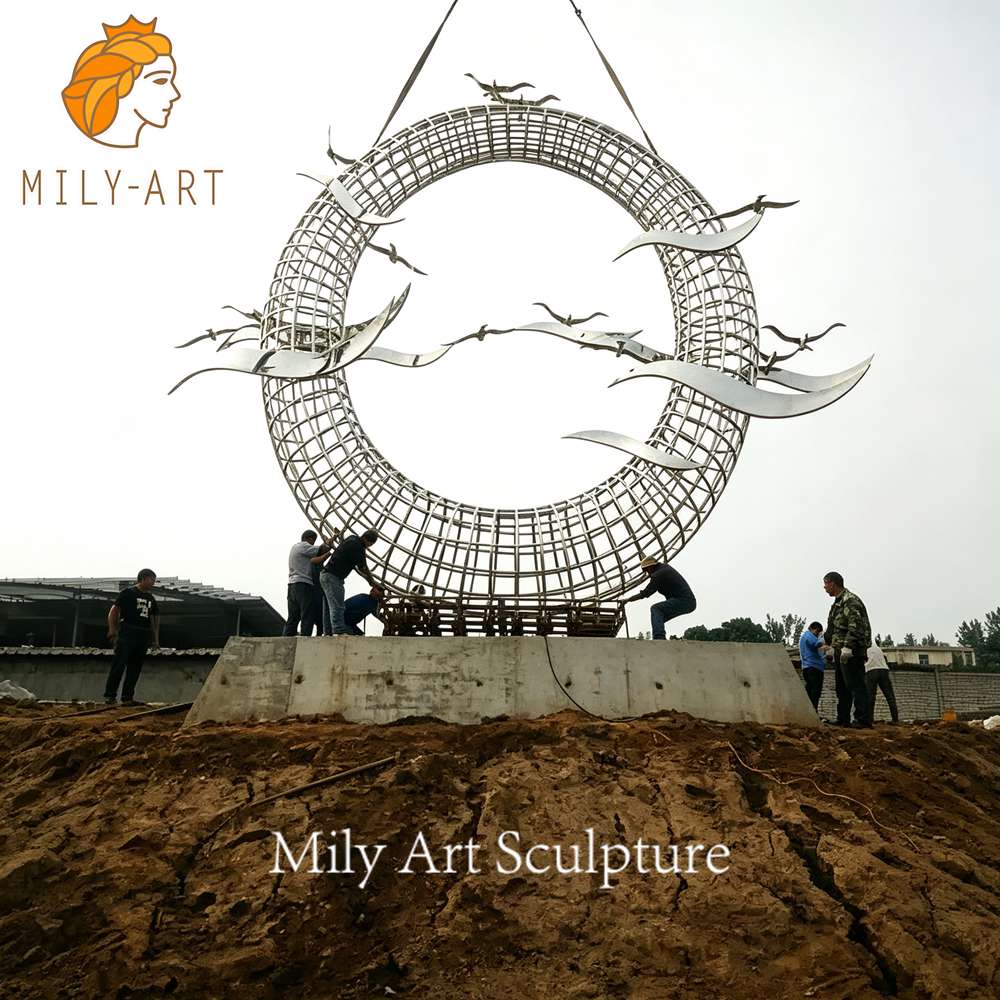

Installing Large or Monumental Sculptures

Large stainless steel sculptures are a different story. They often need factory guidance, engineering review, and government permits. Skipping these steps can lead to safety risks or legal problems.

Factory Installation Support

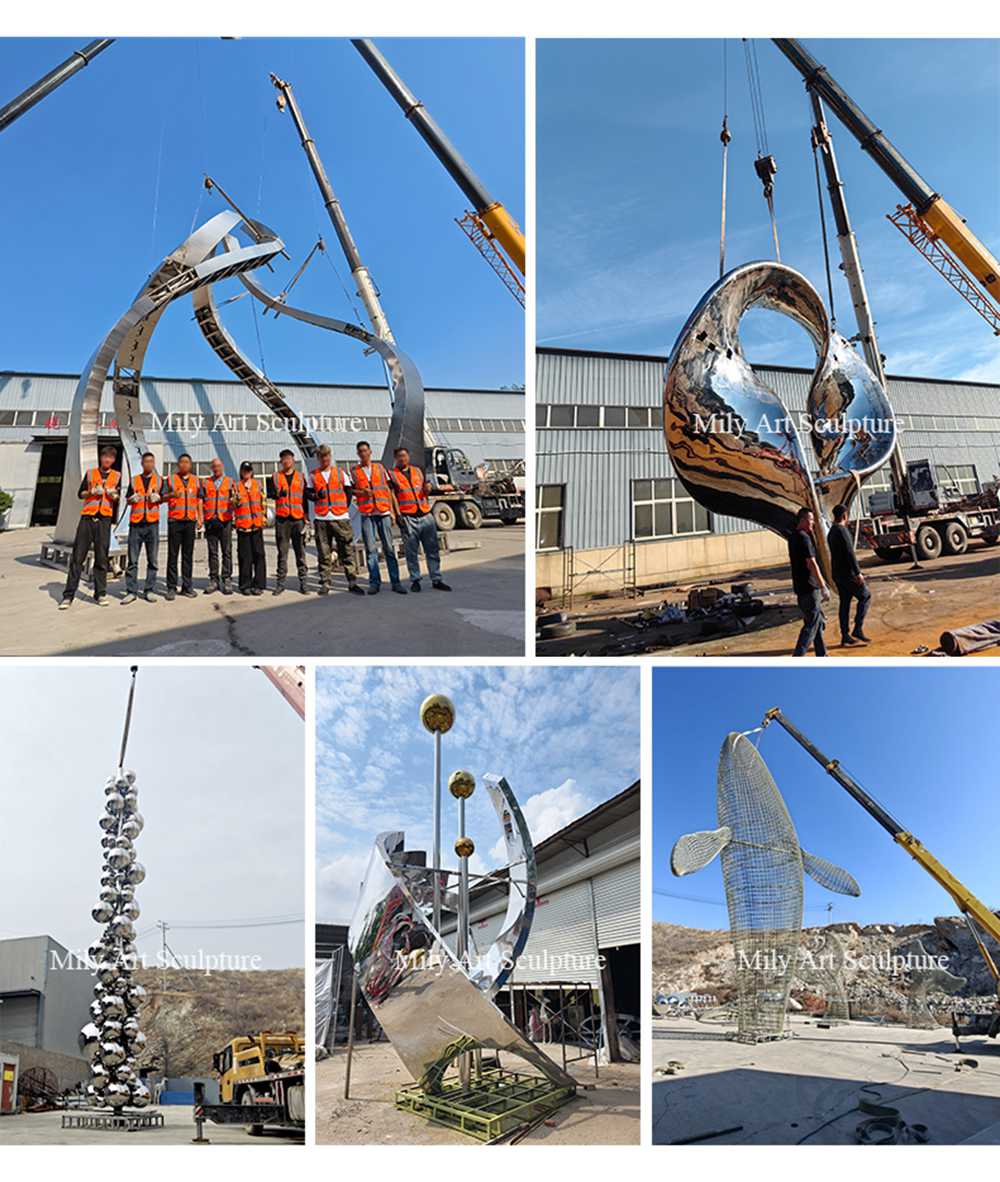

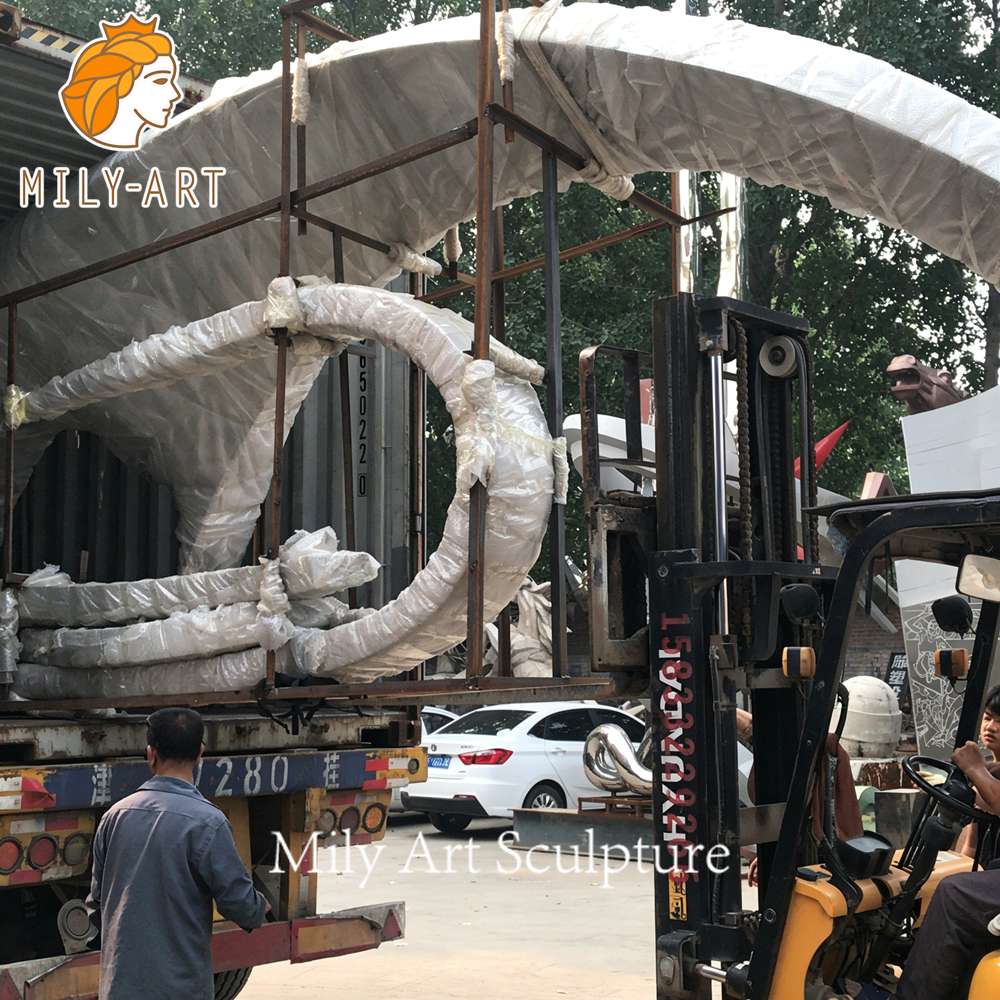

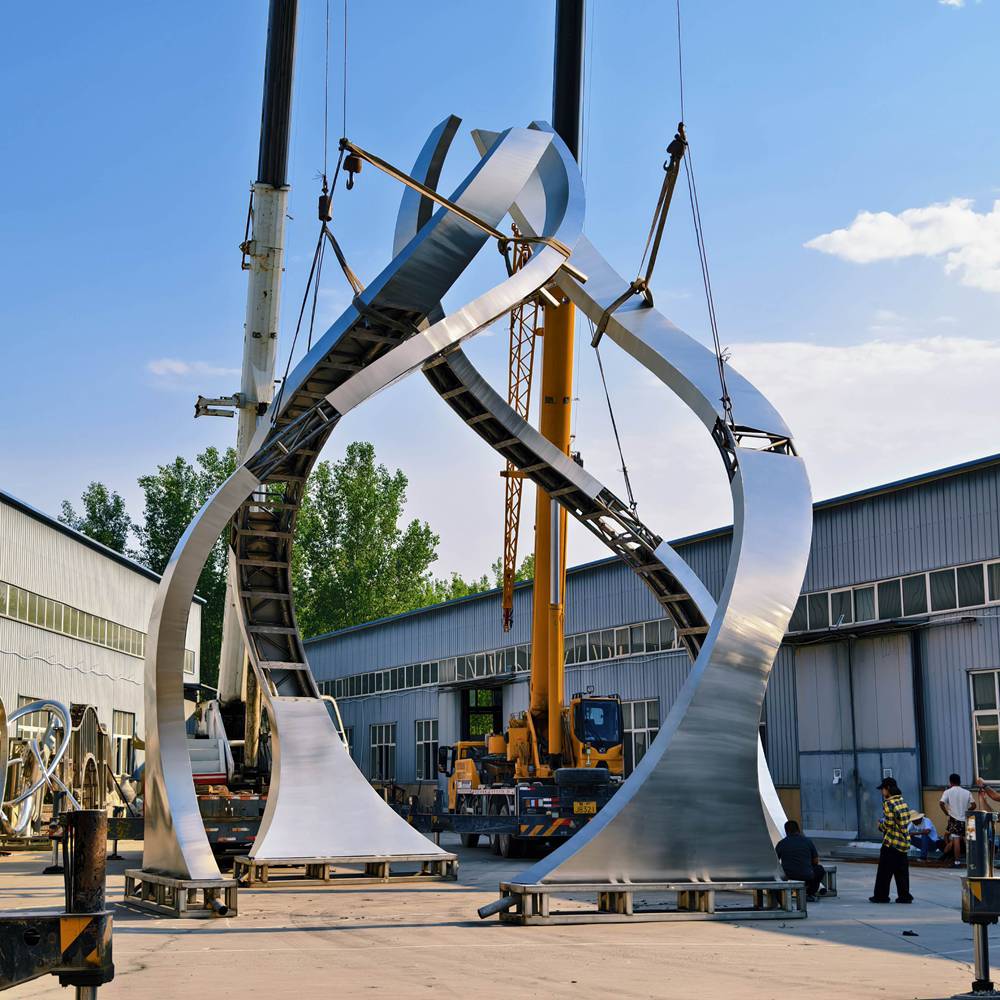

Large sculptures are usually made in sections and shipped separately, then assembled or welded on site. This is why factory support matters. A good manufacturer, like Mily, should provide detailed installation drawings before the sculpture ships. These drawings show the exact foundation size, the rebar layout, and the position of the internal steel frame. If needed, Mily can also send experienced technicians to the installation site to provide professional on-site installation support.

Site Assessment

Before any large sculpture installation begins, the site must be checked carefully.

• Soil testing: A soil bearing capacity test tells you whether the ground can support the sculpture’s weight.
• Foundation design: In areas with soft soil, a deep foundation or pile foundation may be required instead of a simple concrete pad.
• Site access: Check whether cranes and heavy trucks can actually reach the installation spot.

Structural Engineering and Safety

Depending on the size of the sculpture, local regulations, and site conditions, a structural engineer may need to review the foundation and installation plan. This engineer will calculate:

• Wind load, especially in open or coastal areas
• Seismic load, if the region has earthquake risk
• The strength of the internal steel frame

Without this kind of engineering review, a large sculpture could become unsafe over time.

Permits and Approvals

Permit requirements are one of the biggest differences between small and large sculpture installation.

• A building permitmay be required, depending on the sculpture’s height, weight, and local building codes.
• Public art installed in parks or plazas often needs approval from a city planning department or public art committee.
• Some locations, such as historic districts or areas near fire lanes, may have extra restrictions.

It is best to start the permit process early. Approval can take weeks or even months in some cities.

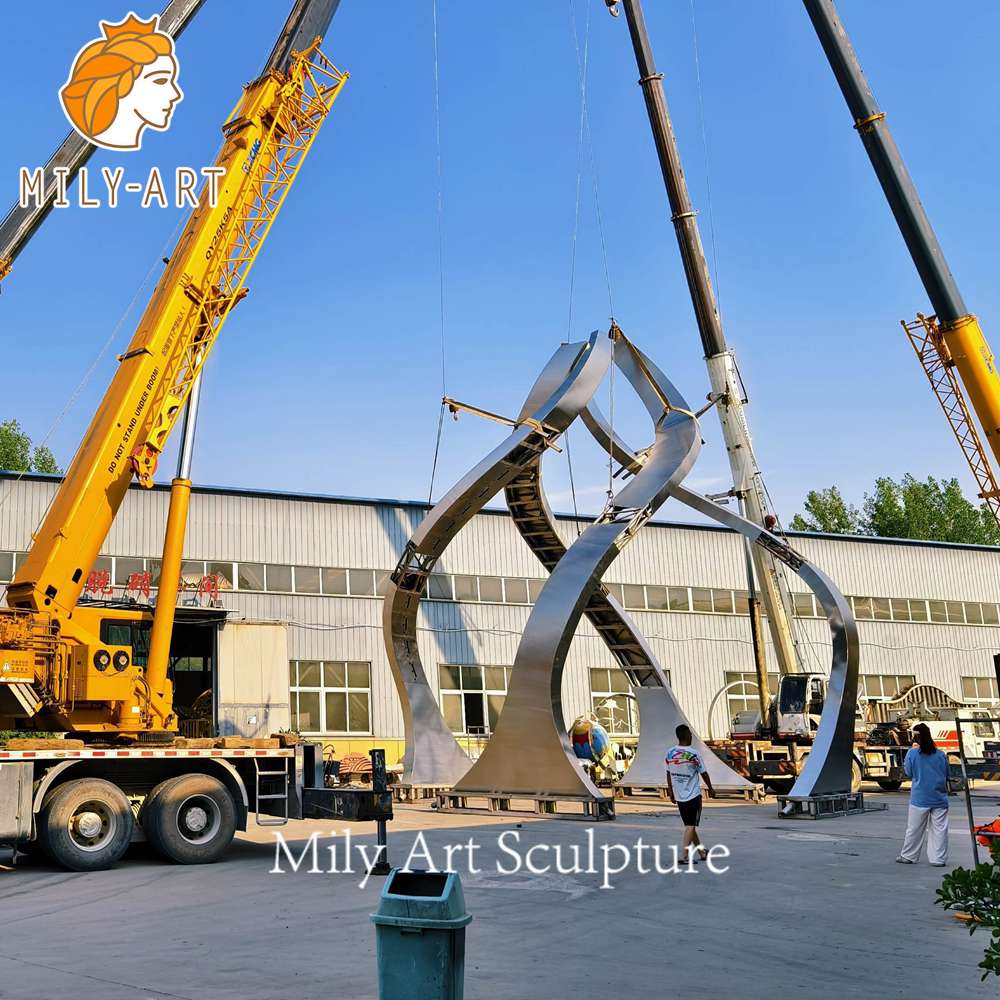

Large Stainless Steel Sculpture Installation Process

Once the drawings are ready and the site is confirmed, large scale public art sculptures installation generally follows five steps.

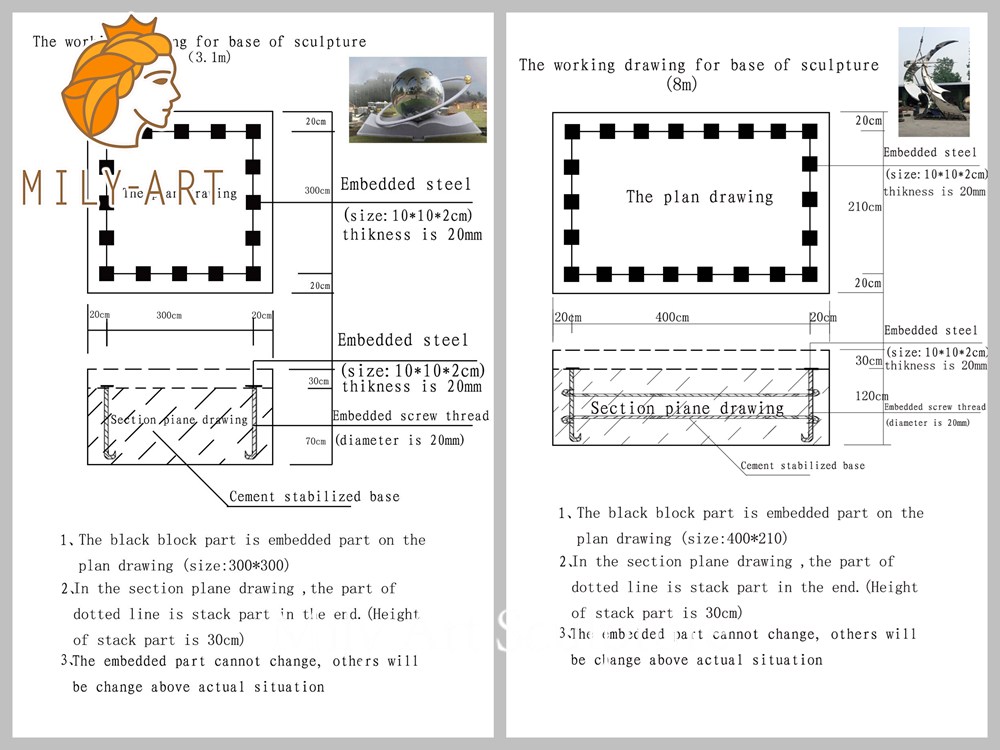

1. Receive the installation drawings

The manufacturer sends detailed installation drawings before the sculpture is shipped. These drawings mark the exact foundation size, the base frame dimensions, and the rebar layout the site team needs to follow.

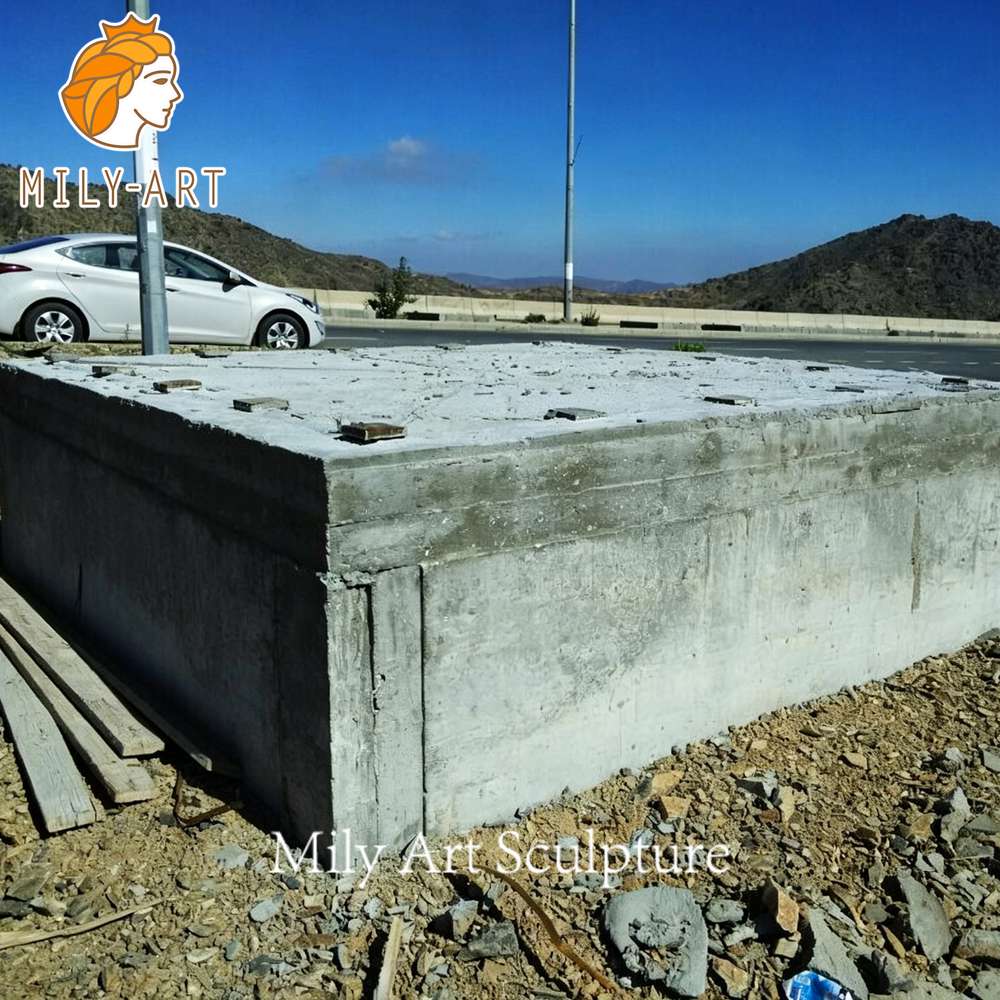

2. First concrete pour (before the sculpture arrives)

Before delivery, the customer needs to dig and pour a concrete foundation on site, following the drawings. Rebar (steel reinforcement bars) is set into this first pour and left exposed at the top. This foundation should be built to the correct size and given enough time to cure before the sculpture arrives.

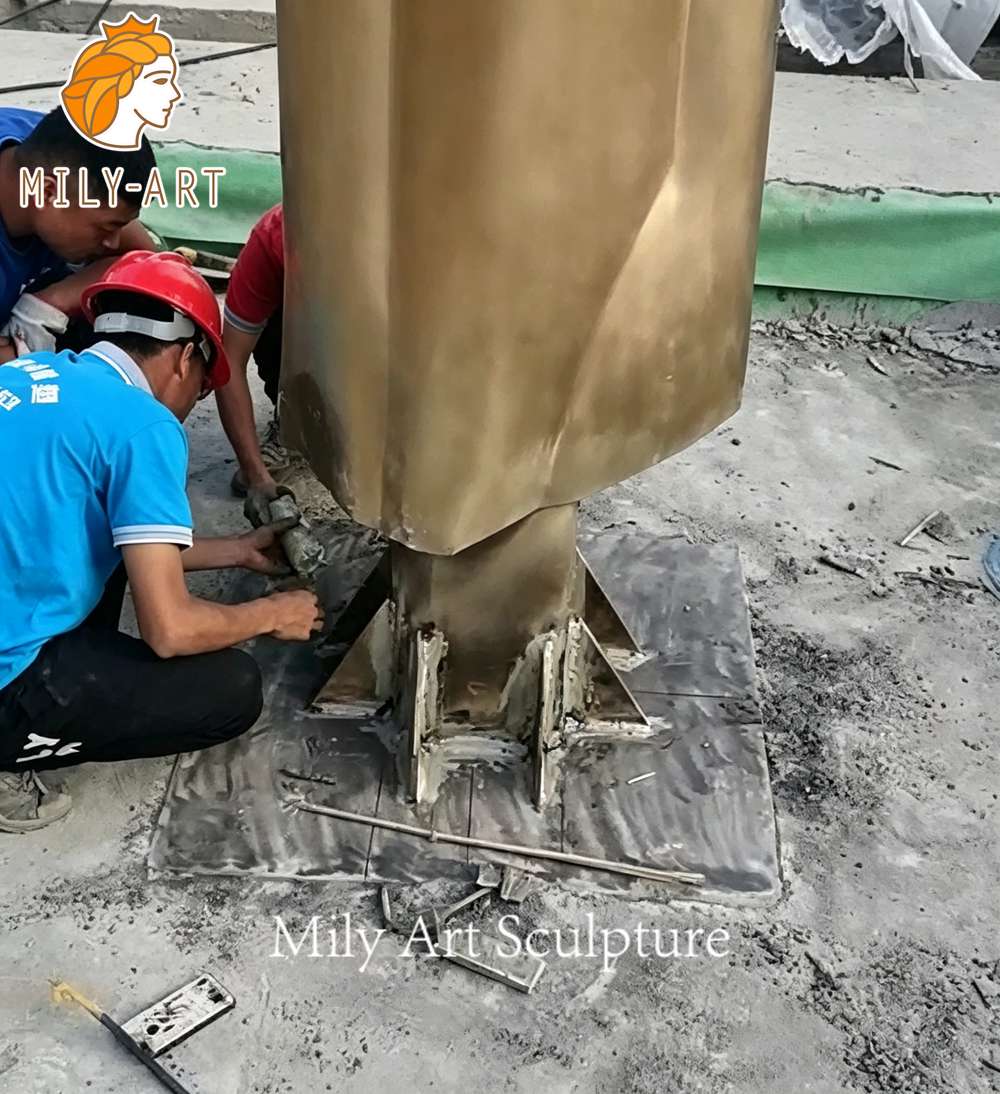

3. Second concrete pour (after the sculpture arrives)

Once the sculpture arrives, installation moves from the bottom up:

• The sculpture’s steel base frame is placed on top of the first concrete foundation.
• The base frame is welded to the rebar left exposed in the first pour, locking the sculpture to the ground.
• A second layer of concrete is poured over the base frame, fully covering the welded joint.
• The concrete surface can then be finished with tile or stone for a cleaner look.
• Steel plates or anchor tabs should already be built into the base frame at the factory, so they are ready for this welding stage. In most cases, about 5 to 10 centimeters of the sculpture’s base ends up embedded in the concret

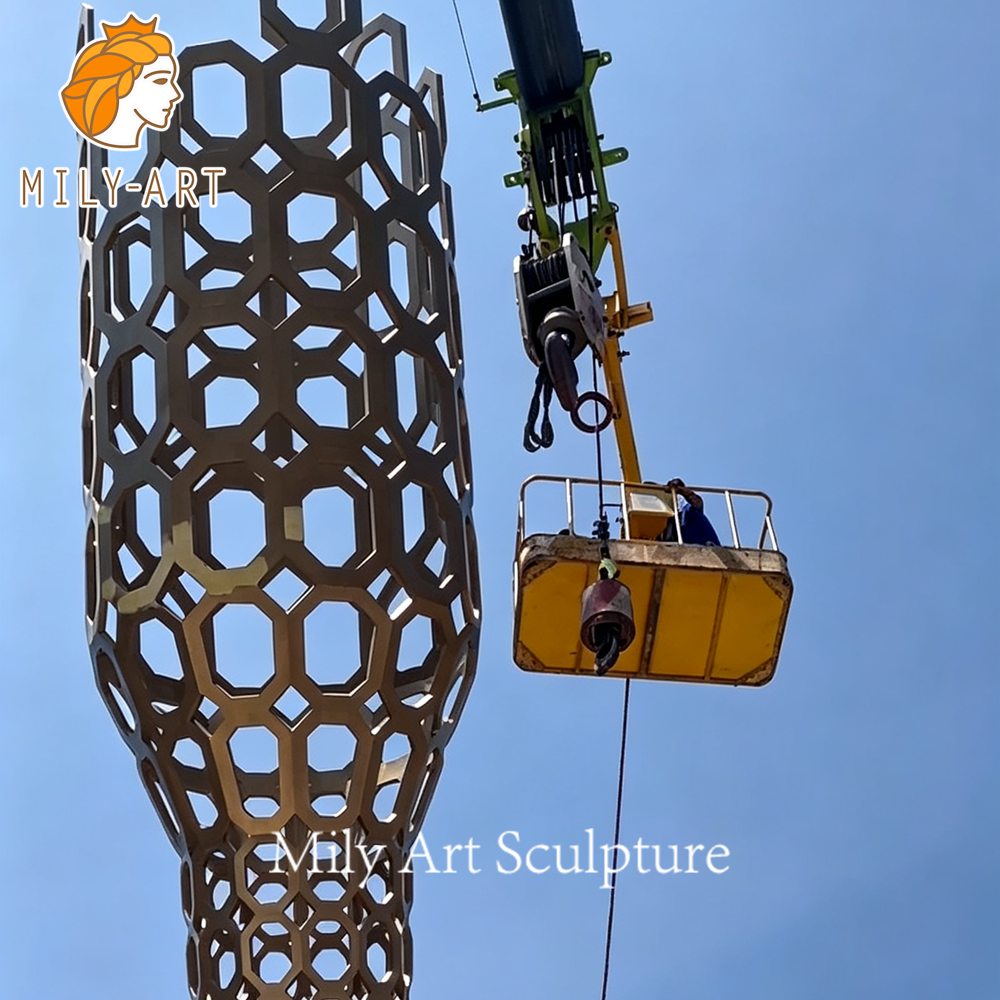

4. Install the upper section

After the base is secure and the second pour has cured, the upper part of the sculpture is lifted into place and connected to the base structure. For taller or heavier pieces, this step usually needs a crane.

5. Welding, grinding, and polishing

Every connection point is welded, then ground smooth so no rough edges remain. The surface is polished to match the rest of the sculpture, so the joints blend in and are not visible.

Tips and Considerations for Large Sculptures：

• Let the concrete foundation cure fully before lifting the sculpture into place.
• Clarify insurance and liability between the installer, the manufacturer, and the property owner before work begins.
• Ask your manufacturer for a maintenance guide, since large outdoor sculptures need periodic inspection.
• Protect the polished stainless steel surface from weld splatter and scratches during on-site work.
• For complex or oversized sculptures, having a factory technician guide the base welding and final polishing is worth the extra cost.

Install Your Stainless Steel Sculpture with Mily

Working with an experienced sculpture manufacturer can make the installation process much easier. Mily provides more than the finished sculpture. For large projects, we prepare detailed installation drawings and clear guidance for key stages, including the first and second concrete pours. Our team can also provide support when the internal base frame is welded and the final surface work is completed on site when needed. For smaller sculptures, we provide clear mounting instructions to simplify installation.

At Mily, we work with clients from the design stage through final installation, so every stainless steel sculpture is safe, stable, and built to last outdoors for years to come.
